NORGREN
BISAGRA CILINDROS ISOLINE

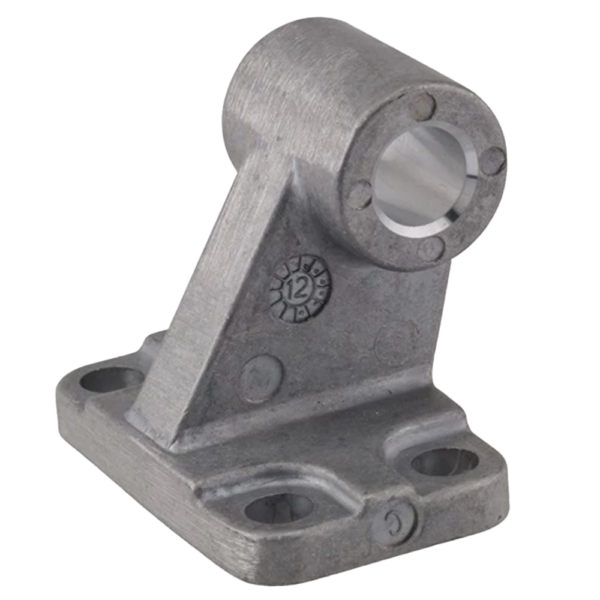

BISAGRA ARTICULACIÓN TAPA TRASERA
| Código SAP | Part Number | Para Cilindros ISOLine Ø |
Diámetro Pasador ø CK |
PH | EM |
|---|---|---|---|---|---|
| 2001039 | M/P19493 | Ø 32 | 10 | 32 | 25,6 |
| 2001040 | M/P19494 | Ø 40 | 12 | 36 | 27,6 |
| 2001041 | M/P19495 | Ø 50 | 12 | 45 | 31,6 |
| 2001042 | M/P19496 | Ø 63 | 16 | 50 | 39,6 |
| 2001053 | M/P19497 | Ø 80 | 16 | 63 | 49,6 |
| 2001043 | M/P19498 | Ø 100 | 20 | 71 | 59,6 |
| 2001044 | M/P19499 | Ø 125 | 25 | 90 | 69 |
| 2001162 | M/P19679 | Ø 160 | 30 | 115 | 89 |
| 2001163 | M/P19683 | Ø 200 | 30 | 135 | 89 |
BISAGRA ARTICULACIÓN TAPA TRASERA
| Código SAP | Part Number | Para Cilindros ISOLine Ø |
Diámetro Pasador ø CD |
FL | EW |
|---|---|---|---|---|---|
| 2001054 | QA/8032/27 | Ø 32 | 10 | 22 | 25,6 |
| 2001055 | QA/8040/27 | Ø 40 | 12 | 25 | 27,6 |
| 2001056 | QA/8050/27 | Ø 50 | 12 | 27 | 31,6 |
| 2001057 | QA/8063/27 | Ø 63 | 16 | 32 | 39,6 |
| 2001058 | QA/8080/27 | Ø 80 | 16 | 36 | 49,6 |
| 2001060 | QA/8100/27 | Ø 100 | 20 | 41 | 59,6 |
| 2001061 | QM/8125/27 | Ø 125 | 25 | 50 | 69,6 |
| – | QM/8160/27 | Ø 160 | 30 | 55 | 89,6 |
| – | QM/8200/27 | Ø 200 | 30 | 60 | 89,6 |
