NORGREN
HORQUILLAS CILINDROS ISOLINE

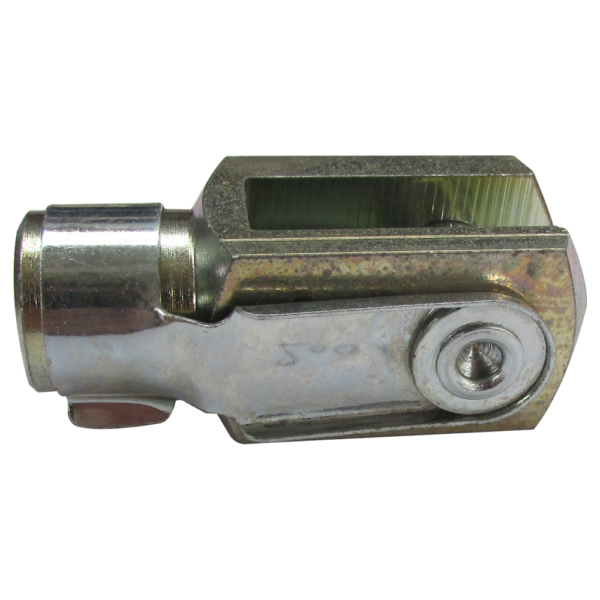

HORQUILLA DELANTERA DOBLE PARA VÁSTAGO
| Código SAP | Part Number | Para Cilindros ISOLine Ø |
Diámetro Pasador ø CK |
KK | CE |
|---|---|---|---|---|---|
| 2001010 | QM/8025/25 | Ø 32 | 10 | M10 x 1,25 | 40 |
| 2001011 | QM/8040/25 | Ø 40 | 12 | M12 x 1,25 | 48 |
| 2001012 | QM/8050/25 | Ø 50/63 | 16 | M16 x 1,5 | 64 |
| 2001013 | QM/8080/25 | Ø 80/100 | 20 | M20 x 1,5 | 80 |
| 2001014 | QM/8125/25 | Ø 125 | 30 | M27 x 2 | 110 |
| 2001015 | QM/8160/25 | Ø 160/200 | 35 | M36 x 2 | 144 |
